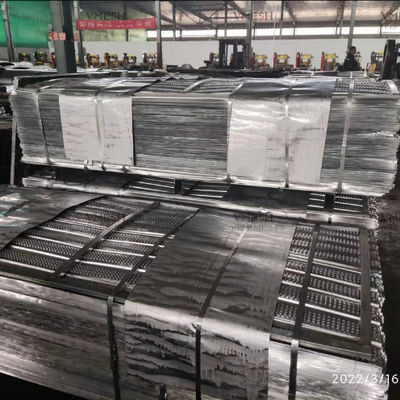

Concrete Construction Galvanized High Rib Lath Formwork for Concrete Floor Decking
Product Specifications
| Attribute |
Value |
| Name |
Concrete Construction Galvanized High Rib Lath Formwork for Concrete Floor Decking |
| Material |
Galvanized panel |
| Width |
0.45m |
| Length |
2m/2.5m |
| Thickness |
0.3mm/0.35mm/0.4mm |
| Feature |
Corrosion Resistance, Acid-resisting |
| Usage |
Interior/exterior |
| Surface treatment |
Hot Dipped Galvanized |
| Keyword |
Long life |
Product Overview

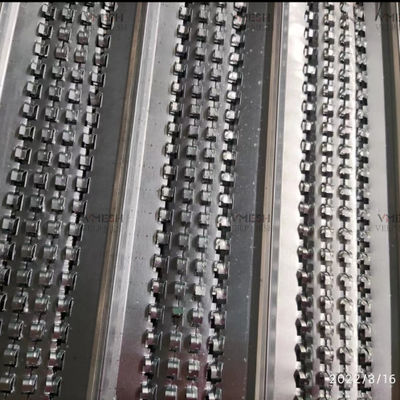

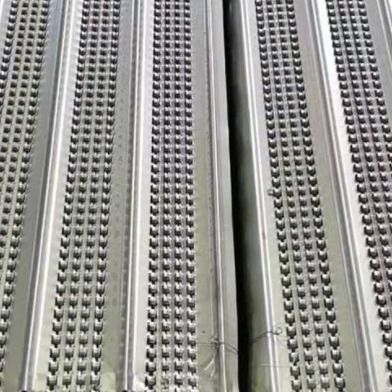

Galvanized High Rib Lath Formwork is popularly known as Expanded Rib Lath due to its process of expanding metal sheet. This galvanized steel ribbed lath wire mesh is a free template network, making it an ideal building material for plastering base, structural formwork and fireproofing construction.
Design Features
- Hi Rib panels are designed to be placed close to the edge rib of neighboring panels, ensuring solid joints across the entire length
- Stiffness of panel joints is strengthened during the preparation stage
- Intermediate ribs create internal stiffness along the panel length, allowing supports to be bridged
- Reduced load requirements mean fewer support systems are needed
Technical Parameters
| Name |
Formwork Hot Dipped Galvanized Steel Sheets Rib Metal Lath |
| Width |
0.45m |
| Length |
2m/2.5m |
| Thickness |
0.3mm/0.35mm/0.4mm |
| Feature |
Easy to cut/Long life |
Key Advantages
No Formwork Removal: As the mesh stays in place, labor and time are saved by eliminating the need to remove traditional formwork.
Better Concrete Bonding: Perforations or mesh structure allow concrete to pass through and create a solid bond between the mesh and the concrete.
Lightweight and Easy to Install: Mesh is lighter than traditional formwork, making it easier to transport and install on-site.
Corrosion Resistance: Galvanized and stainless steel options provide durability and protection in corrosive environments.
Applications
Widely used in tunnels, bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools, marine engineering works, high-rise building projects, and non-regular or bending patterns. Serves as concrete permanent assembly free formwork.
Our Services
- Online Technical Support
- Onsite Installation
- Onsite Training
- Onsite Inspection
- Free Spare Parts
- Return and Replacement
Frequently Asked Questions
Q1: Can I get free samples?
A: Yes, we have free samples available anytime.
Q2: What type of materials do you use for your products?
A: Carbon steel, galvanized plate.
Q3: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control.
Q4: What are your payment terms?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you videos of products and packages before you pay the balance.
Q5: How about the delivery time?
A: Generally, it takes 15 days after receiving your advance payment. Specific delivery time depends on items and order quantity.
