Galvanized Rib Lath Formwork for Cement Pouring 1.1m x 3m

Galvanized Rib Lath Formwork for Cement Pouring 1.1m x 3m
Galvanized Rib Lath Formwork for Cement Pouring 1.1m x 3m Galvanized Rib Lath Formwork for Cement Pouring 1.1m x 3m Galvanized Rib Lath Formwork for Cement Pouring 1.1m x 3m Galvanized Rib Lath Formwork for Cement Pouring 1.1m x 3m

Μεγάλες Εικόνας :  Galvanized Rib Lath Formwork for Cement Pouring 1.1m x 3m

Λεπτομέρειες:
Τόπος καταγωγής: Επαρχία Hebei Κίνα
Μάρκα: VELP
Πιστοποίηση: SGS,BV ISO
Αριθμό μοντέλου: Σύρμα γυψοκονιάματος 002
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1pcs
Τιμή: USD5.9-USD7/pcs
Συσκευασία λεπτομέρειες: Ιατρική παλέτα + ζώνες ασφαλείας
Χρόνος παράδοσης: 10-15 ημέρες
Όροι πληρωμής: Λ/Κ, D/A, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 3000 τ.μ./ημέρα

Galvanized Rib Lath Formwork for Cement Pouring 1.1m x 3m

περιγραφή
όνομα: Ελαφριά Γαλβανισμένη Ριγωτή Λαμαρίνα για Δομικά Έργα Σκυροδέτησης Υλικό: Γαλβανισμένος Χάλυβας
Μέγεθος: 1.1μ*3μ ή προσαρμοσμένο Βάρος: 11kg/τ.μ.
Πηχάκι πλευρών: 0.4 mm πάχος Προφίλ C: Πάχος 0.6mm
Συνδετήρες: Πάχος 1.5mm, 20*19mm Rebar: Διάμετρος 5 mm, δύναμη έλξης 700N/mm2
Χαρακτηριστικό: Μακροχρόνια, αυξάνει την αντοχή, ελαφρύ βάρος, εξοικονομεί χρόνο Ελάχιστη Ποσότητα Παραγγελίας: 1pcs
Επισημαίνω:

galvanized rib lath formwork

,

stucco wire mesh for cement

,

1.1m x 3m rib lath

Lightweight And Easy Install Expanded Metal With Rib Cement Formwork Systems
Product Specifications
Attribute Value
Name Light Weight Galvanized Rib Lath Cement Pouring Formwork Structure
Material Galvanized steel
Size 1.1m*3m or customized
Weight 11kg/sqm
Rib lath 0.4mm thickness
C-profiles 0.6mm thickness
Connectors 1.5mm thickness, 20*19mm
Rebar 5mm diameter, 700N/mm² traction strength
Feature Long lasting, enhance strength, light weight, save time
MOQ 1pcs
Product Description

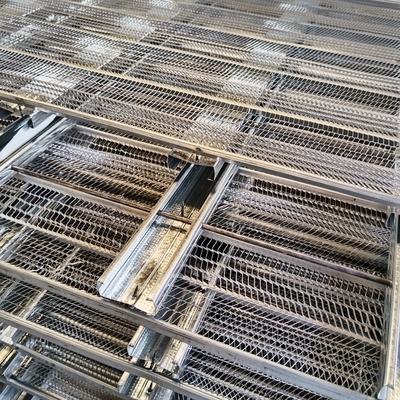

Rib Lath Formwork Structure Product Information

Hy-Rib is a high-ribbed, sacrificial formwork solution engineered for superior performance in large-scale concrete construction. Made from galvanised expanded metal mesh, Hy-Rib ensures durability and structural reliability while simplifying the construction process. Its unique ribbed design promotes excellent aggregate interlock, delivering enhanced joint strength and long-lasting concrete durability.

This versatile formwork system is suitable for both horizontal and vertical placements and eliminates the need for extensive surface preparation, such as scabbling. Its high visibility during concrete pours enables precise visual monitoring, reducing the risk of voids and honeycombing. Hy-Rib optimises labour efficiency, minimises formwork pressure, and accelerates the pouring process, providing economic advantages to construction projects.

Key Advantages
  • High Strength: Reinforces cement layers, reducing shrinkage cracks.
  • Excellent Adhesion: Ribbed design ensures strong bonding with mortar/plaster.
  • Corrosion Resistance: Galvanized coating protects against rust in humid or outdoor environments.
  • Lightweight & Flexible: Easy to cut, shape, and install on curved or flat surfaces.
  • Fireproof: Non-combustible, suitable for fire-rated constructions.
Applications

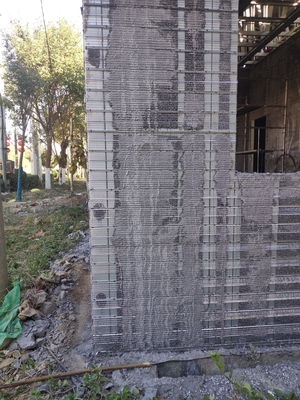

  • Plaster/Stucco Reinforcement: Used in walls, ceilings, and facades.
  • Concrete Formwork: Reinforces thin-section concrete (e.g., prefab panels, decorative elements).
  • Tile Backing: Provides a stable base for tile adhesion in wet areas.
  • Repair Works: Strengthens patches in damaged concrete/plaster surfaces.
Frequently Asked Questions
Q1: Can I get a free sample?

A: Yes, we have free samples to be provided anytime.

Q2: What type of materials do you use for your products?

A: Galvanized steel.

Q3: Is there quality control on all production lines?

A: Yes, all production lines have adequate quality control.

Q4: What is your terms of payment?

A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the videos of products and packages before you pay the balance.

Q5: How about the delivery time?

A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

About Us

Founded in 2000, our workshop started from a 10-person team under the leadership of Mr. CUI (Our General Manager). By 2010, we enlarged our workshops to 5000 sqm, with complete different departments including Production, Sales, After-sales, Technology, Research and Development, Procurement, Design etc.

Today, Anping Velp Wire Mesh Products Co., Ltd has developed an enviable reputation for the research, development and as the premier option for expanded metal, perforated metal mesh, safety walkway grating, Stainless steel 304/316 weave mesh, Building stucco mesh products in China.
